SABR has been a long-time supplier to Fermilab; America's Particle Physics and Accelerator Laboratory.
SABR’s work on the Recycler Ring Permanent Magnet Dipole upgrade was “a great success and behaved exactly as expected” according to the reviews. |
|

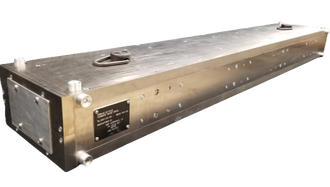

Fermilab Recycler Permanent Magnet Dipole
.4122±0.03% T-m, B=.2352, Leff=1.753m, <0.03% 15mm x 80mm |
Thermal stability <0.01%/°C 21°C to 31°C, Weight=460kg
Adjustable field integral at Fermilab ±0.05% |
|
Design of an arrangement of cubic magnets for a quasi-axisymmetric stellarator experiment. Click here to read the Technical Report. A special thank you goes out to ARPA-E, Princeton Plasma Physics Laboratory, and the Stellar Energy Foundation for making this possible.
|
|
|
|
The UCNτ experiment measures the neutron lifetime using magnetically trapped ultracold neutrons (UCN). This approach effectively eliminates the dominant source of loss and systematic uncertainty related to the absorption and upscatter from the UCN collisions with material surfaces.

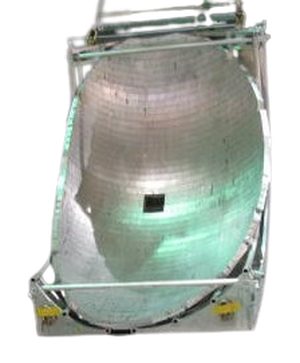

LANCE - Los Alamos Neutron Science Center Indiana University Department of Physics 670 liter magnet trap composed of over five thousand (5,000) NdFeB magnets.
|
PM Drift Tube Quadrupoles
|

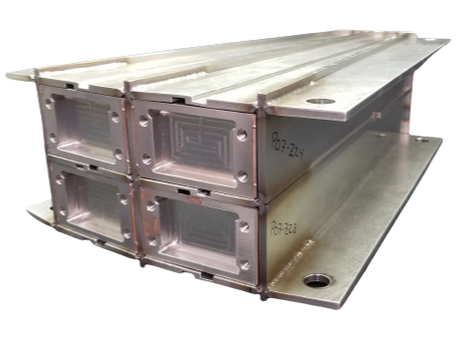

Beam Line Dipoles
|
